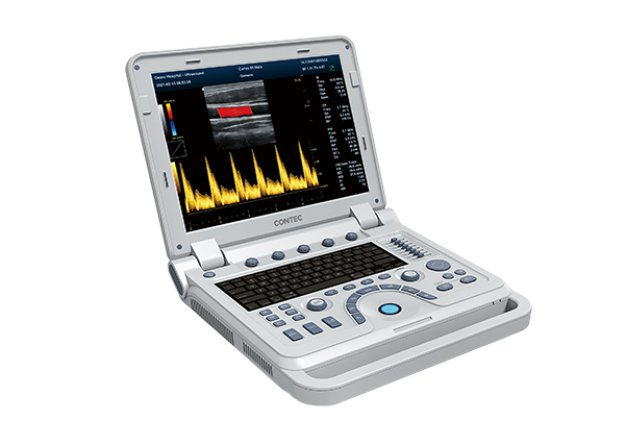

CMS1700A is a color Doppler ultrasonic diagnostic device with high resolution, which has a powerful computer processing platform. The system is mainly suitable for the diagnosis of abdomen, heart, peripheral vessels, breast, obstetrics and gynecology, small organs, urology, muscle, incretion and pediatrics, etc. It adopts Doppler ultrasound imaging technology, advanced image processing technology (such as digital beam-forming technology, tissue harmonic imaging (THI), image speckle suppression, etc.) and digital integrated graphic management system, and the internal professional measurement software package can fully meet the clinic diagnostic requirement.
Ergonomic Design
15 Inch TFT Display
Viewing Angle: 170°
Resolution: 1024X768 Pixels
7500mAh Lithium Battery
Continuous Working Time: 2 hours
Easy Operation
One Button Automatic Image Optimization
Trolley (Optional)
Echo
Advanced Technologies
Digital Beam Forming (DBF)
Real-time Dynamic Aperture (RDA)
Dynamic Receiving Focus (DRF)
Tissue Harmonic Imaging (THI)
PW Auto Trace
Trapezoid Imaging
Compound Imaging
B+CF/PDI/DPDI+PW
Full-Screen Display
Economic
The latest platform & more advanced chip-set give you better imaging quality at lower cost
Support PC printer with reduced paper cost 128G Memory Card
Eco-Friendly
Less Radiation
Lower Power Consumption
Longer Usage Life: TFT
Support Timing Lock
Distributors can set timing lock according to the
buyers’ payment schedule:
e.g. 3 Months/ 6 Months/9 Months
Accessories
One Convex Probe (3.5 MHz)
One Power Cord
One User Manual
One Adapter
Physical Characteristic
Dimension: 370mm (L) * 360mm (W) * 80mm (H)
Weight: 6.5kg
Applications
Abdomen, OB/GYN
Vascular, Small Organ
Imaging Technologies: SR, DBF, RDA,THI, DRF,, IMT, PW Auto Trace,B+CF/PDI/DPDI+PW
Display Mode: B, B/B, 4B, PDI, M,CF, PW
Gray Scale: 256 Levels
Scanning Depth: 250mm Max (Depend on the probe)
Archive Management
Patient Information Management,
Image/Video Record, Examination Report
Software Package
General, OB/GYN, URO,
Cardiac, Vascular, Small Organ
Zoom: 4 Steps
Cine Loop: 1086 Frames
Probe Frequency: 2.0Mhz-12.0Mhz (Depend on the probe)
Option: Color M-mode, Anatomic M-mode,Wide Scene Imaging, Linear Array Deflection/Trapezoid Imaging,Trolley，
Standard Configuration
2 Probe Connection Ports, 2 USB, VGA Port,
Video Port, S-Video Port, LAN Port,
B+CF, TSI, THI, iTHI, HPRF, B+PW,
B+CF/PDI/DPDI+PW,
Space Compounding Imaging
Power Supply: AC 100-240V, 50-60Hz
