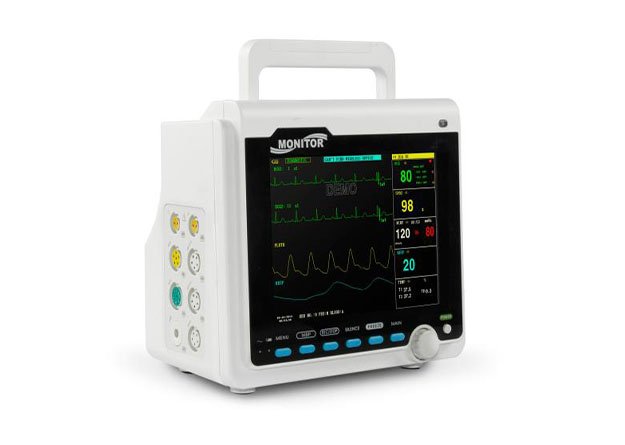

The monitor has abundant monitoring functions and is used for monitoring of adult, pediatric and neonate. User may select different parameter configurations according to different requirements. It displays real-time data and waveform by 8'' TFT color LCD, and up to 8-channel waveform and all monitoring parameters can be displayed simultaneously. 48mm thermal printer is optional. In addition, it can be connected to the central monitoring system via wired/wireless network so as to form a network monitoring system.
This device can monitor such parameters as ECG, RESP, SpO2, PR, NIBP and dual- channel TEMP, etc. It integrates parameter measurement module, display and recorder in one device to form a compact and portable equipment. At the same time, its built-in replaceable battery provides convenience for patient moving.
Standard parameters: ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP
ECG
Heart rate(HR)
ECG waveform
Arrhythmia and ST-segment analysis
RESP
Respiration rate(RR)
Respiration waveform
SpO2
Oxygen saturation(SpO2)
Plethysmogram(PLETH) waveform
Pulse rate(PR)
Bar graph
NIBP
Systolic pressure(SYS), Diastolic pressure(DIA), Mean pressure(MEAN)
TEMP
T1, T2, TD
CO2 (optional)
EtCO2, INSCO2, AWRR
IBP (optional)
CH1：SYS，DIA，MAP
CH2：SYS，DIA，MAP
IBP waveform
It has abundant functions, such as audible and visual alarm, trend data storage and output, NIBP measurement, alarm event marking and drug concentration calculation, etc.
